3D Welding Table | Perforated Table "FSMT-1" | D16 - 400x400mm
€546.00
Content:
1 Piece
Manufacturing time 14 days + delivery time 1-3 days
Product number:
8041-0101
EAN:
0754097791722
"Ergonomic & Fast"
The flexible 3D welding table FSMT-1 can be rotated 360° and tilted 90°, so you can always set the ideal position at an ergonomic height.
The 400x400x12mm worktop is held in the D16 | Ø16mm grid and has an additional row of holes for fixing in a vertical plane. The FSMT-1 3D welding table has an overall height of 312mm and can be tilted continuously +- 90° in both directions.
Advantages
Ergonomic working position
By raising the working position by 300mm, welding can be done in a natural upright position. This makes working noticeably more comfortable and less tense.
Lockable angular plane
The function as a lockable angular plane serves as a facilitator and increases precision for 3D special constructions as well as for simple steel constructions. In addition to the countless possible applications of the flexible 3D welding table, its use in pipeline construction should also be mentioned, where the bottles can be positioned precisely using the freely adjustable welding table.
Reduced pollutants
Another positive effect of the raised welding position is the flow of welding smoke, which now rises in front of the welding helmet instead of below it. This significantly reduces the exposure to pollutants with conventional welding helmets.
Special features of the FSMT-1 welding & assembly table
The FSMT-1 welding table offers you the following advantages in production and assembly.
Self-retaining rotary position
By means of a spring-loaded brass locking pin, the worktop can be positioned in a fixed or self-locking position in the simplest way.
- No reaching around on the setting lever when changing positions
- Ideal for series production
- Resistance individually adjustable
Universal fit D16|22|28

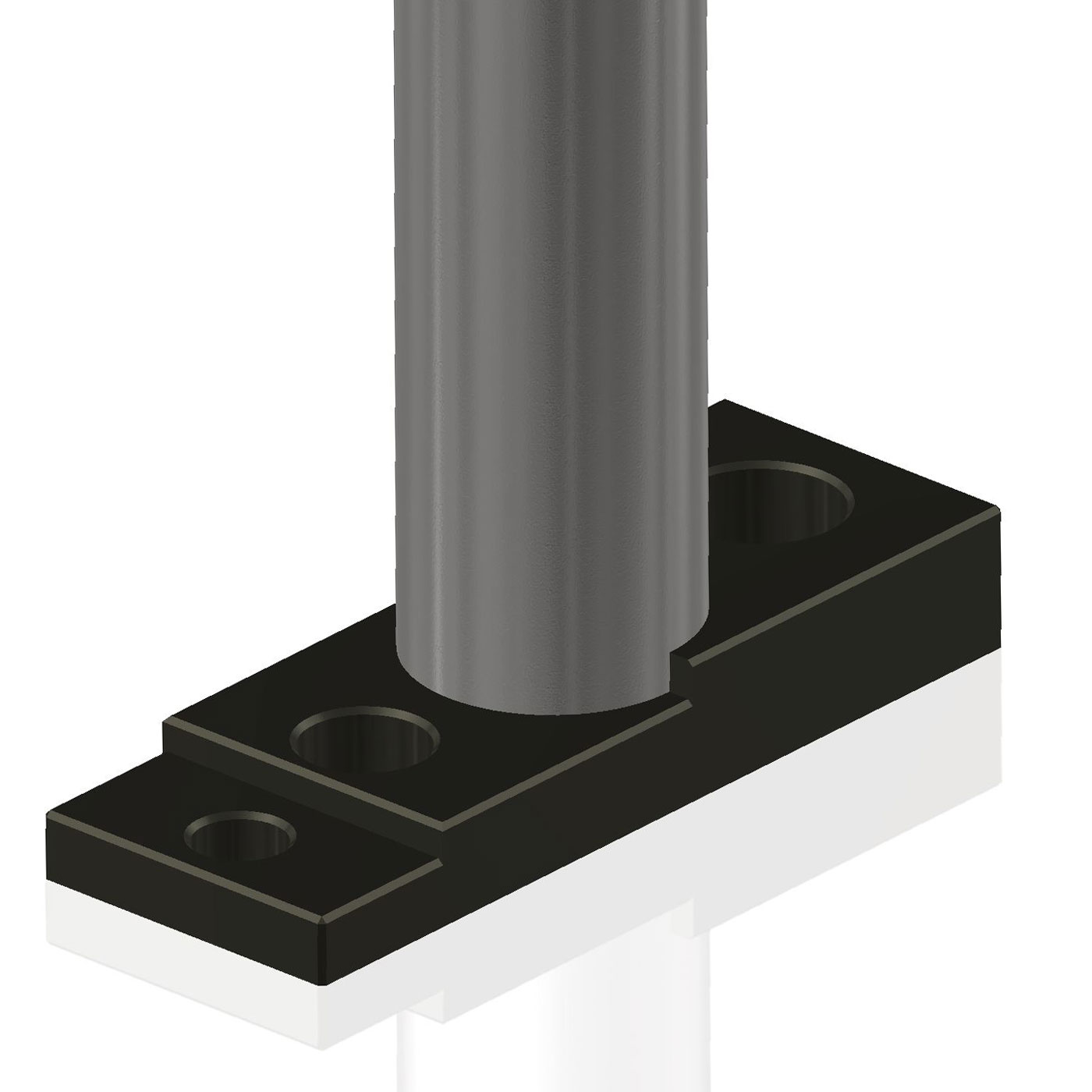

Due to the universal clamping foot, the FSMT-1 welding table can be used on D16, D22 and D28 systems.
In addition, we offer a mounting adapter for screw clamps, with which the FSMT-1 can be used as a mounting table in virtually any workshop.
- Flexible use on all welding tables
- Adapter for vice mounting available separately
Properties "3D Welding Table | Perforated Table "FSMT-1" | D16 - 400x400mm"
| Dimensions in mm ( W x H x L ) : | 400 x 312 x 400 |
|---|---|
| Material: | Steel - galvanised |
| Special design: | No |
| Special features: | Rotatable | Pivotable |
| Suitable for: | D16 | D22 | D28 |
| System | Grid: | D16 | Ø16mm |
